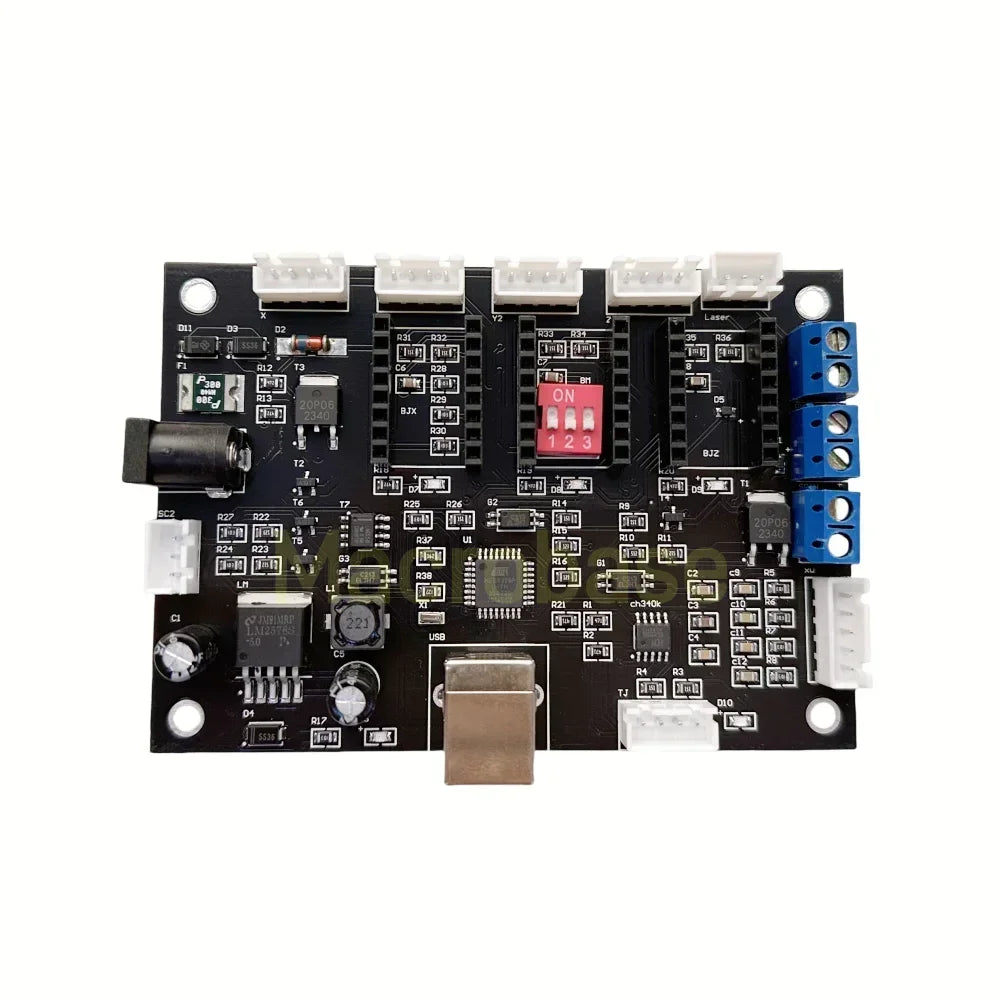

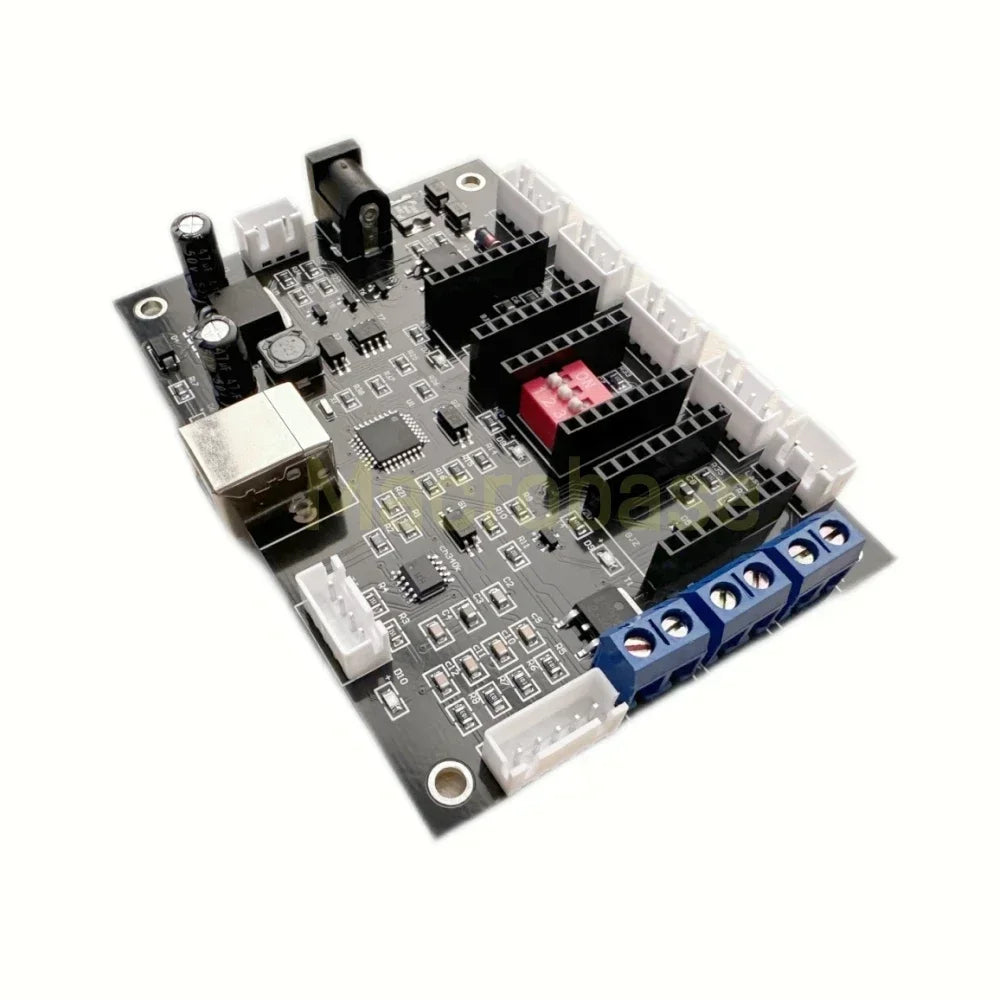

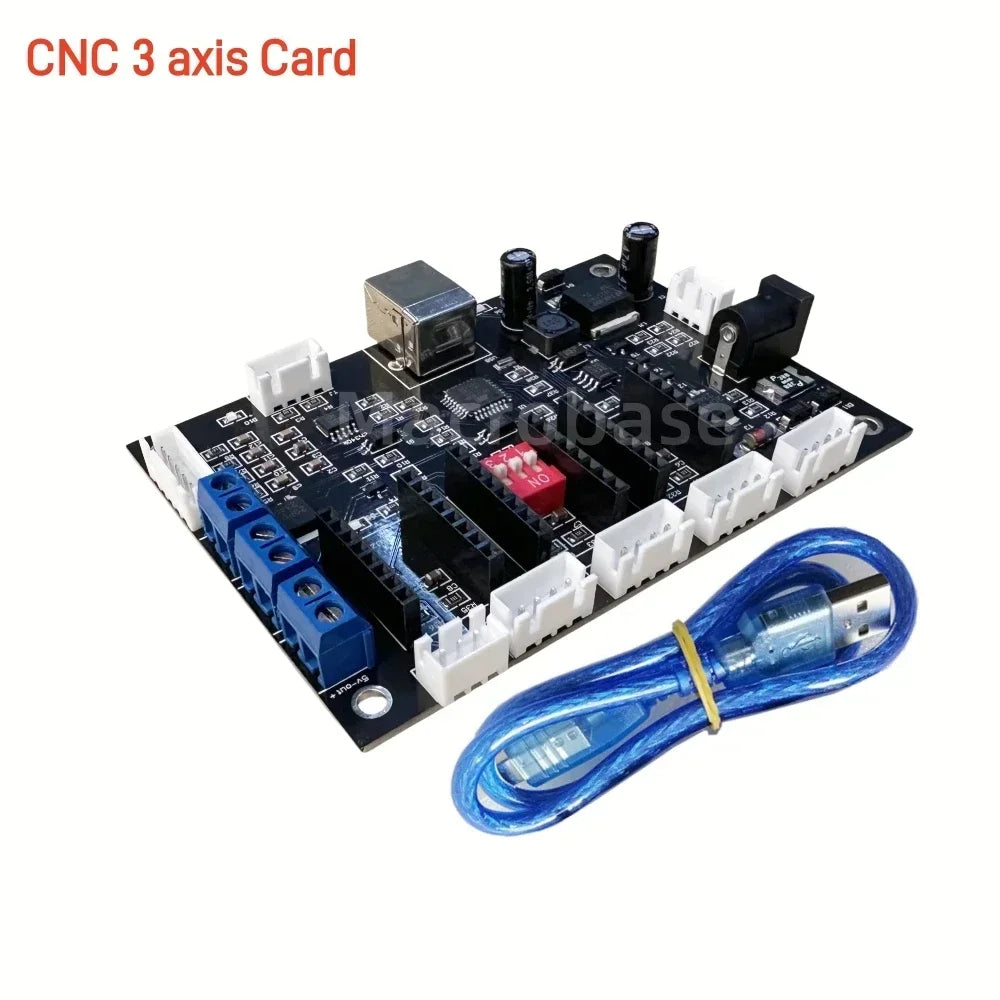

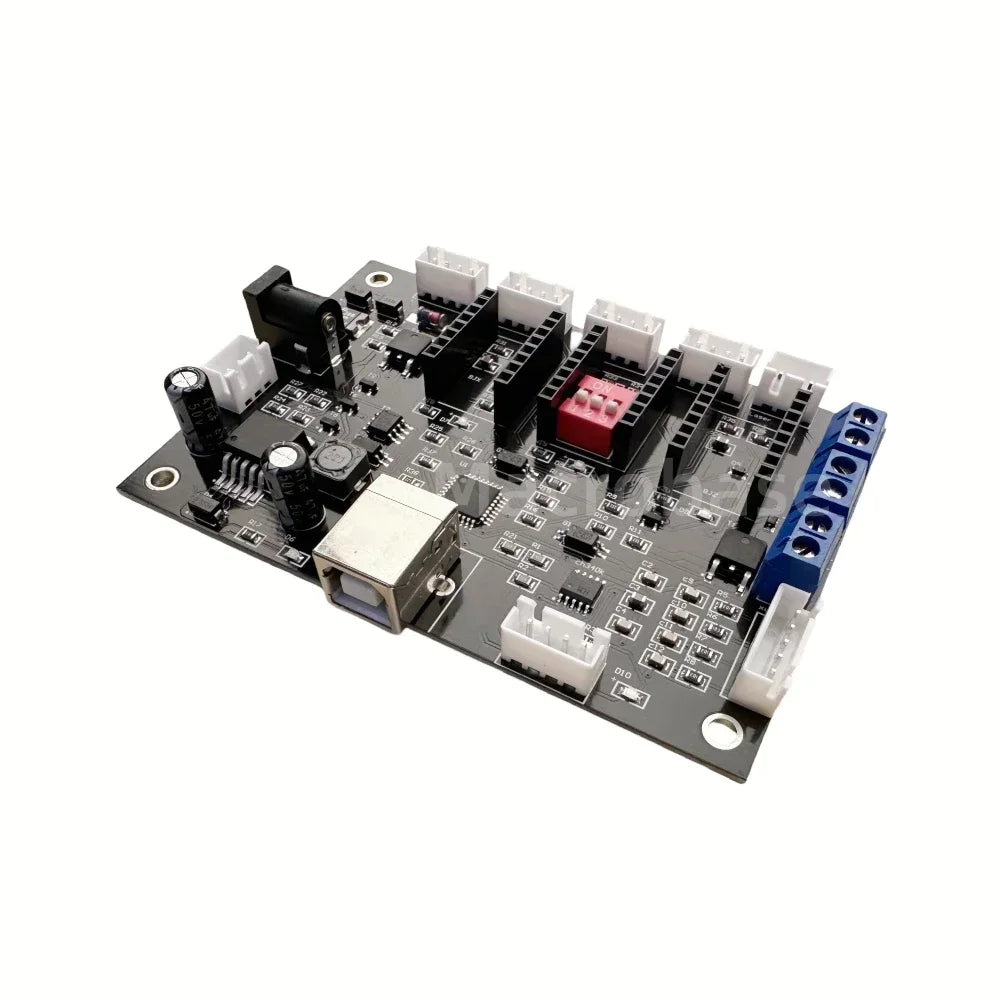

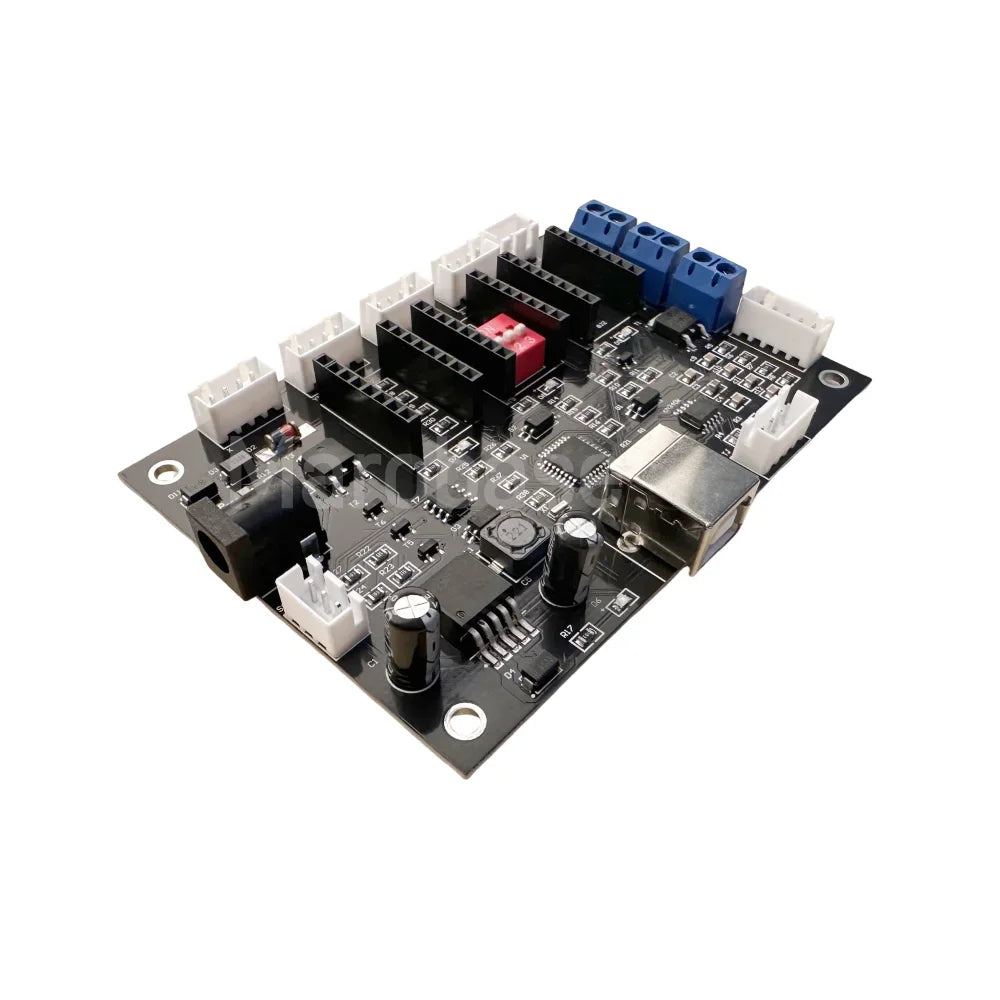

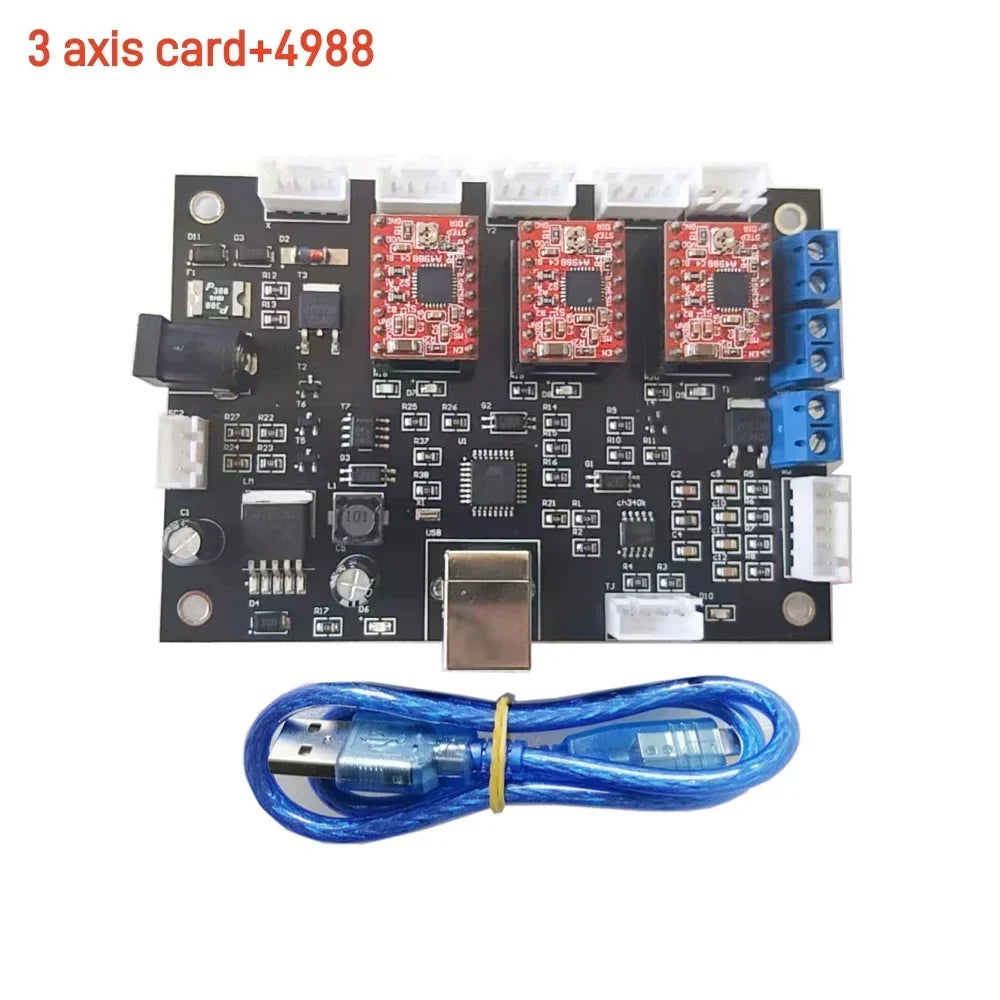

3 axis cnc shield controller
3 axis cnc shield controller
Impossible de charger la disponibilité du service de retrait
PROBE Z probe
X-LIM X limit,Always on
Y-LIM Ylimit,Always on
Z-LIM Zlimit,Always on
GND X,Y,Z limit com,Z probe
PWM PWMoutput
GND PWM
Install ch340 USB Driver
Software
Candle,CNC3dCommanderand Bcnc.
1.Candle
Unzip candleand open candle.exe
Confirm CAM and baudrate.
2.BCNC
Plug control board to PC via USB cable,and enter bcnc.exe
Click CAM,select language.
Enable 6 axis display,then reboot software.
Click file,select COM and open it.
3.CNC3dCommander
Open CNC3dcommanderas below
Control board setting
Enter Candleand get board connected,set below parameters.
Homing
Type $22=1enable, $22=0disable
Direction
X + Y + Z + 0
X- Y + Z + 1
X + Y- Z + 2
X- Y- Z + 3
X + Y + Z- 4
X- Y + Z- 5
X + Y- Z- 6
X- Y- Z- 7
Defult $23=0,Upper right corner, Z-axis up
$23=1,Upper left corner
$23=2,Bottom right corner
$23=3,Bottom left corner
$23=4,Zaxis negative Homing
