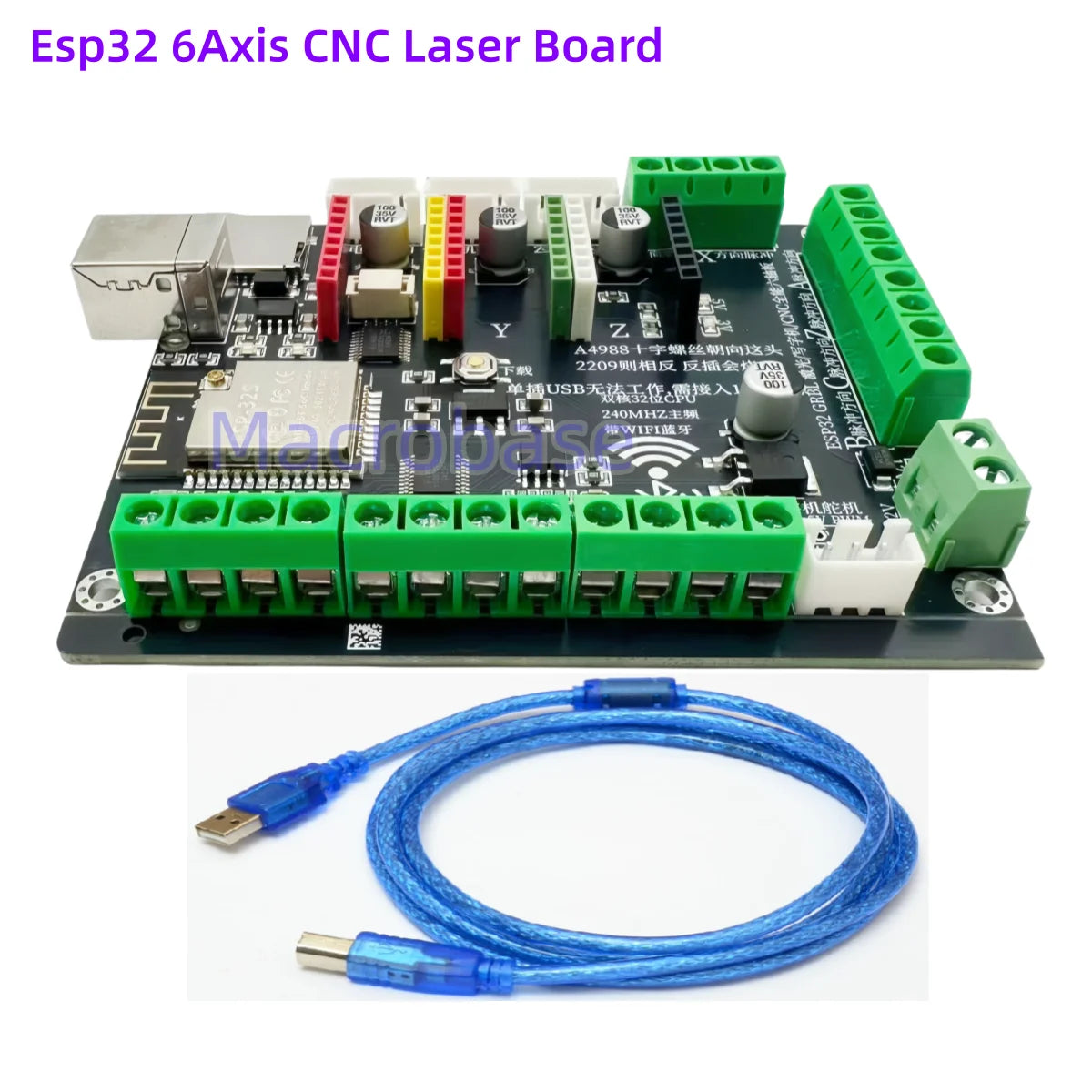

ESP32 GRBL 6 axis controller
ESP32 GRBL 6 axis controller
Regular price
$16.90
Regular price
$23.00
Sale price
$16.90
Unit price
per
Couldn't load pickup availability
Files Download
github.com/Macrobase-tech/ESP32_GRBL_6-Axis
Packing List
1*GRBL 6axis Board + 1*USB
Feature
Adopt ESP32-S core processor and dual core 32-bits 240MHz CPU.
Compatible with Candle,LightBurn,ioSender,GRBL controller software...
Support WIFI, Bluetooth, USB, SD card, PC and wireless Ethernet.
Support laser/plotter/writing machine and CNC.

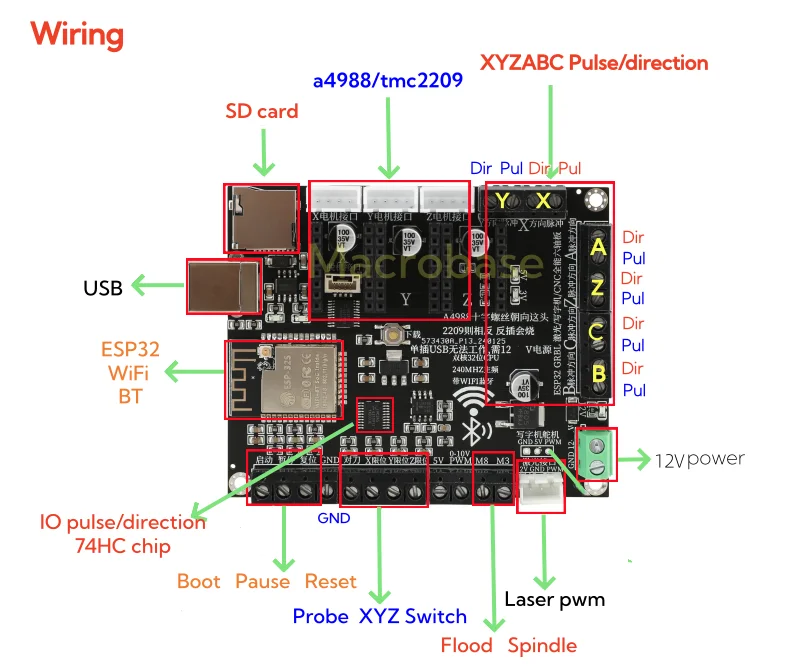

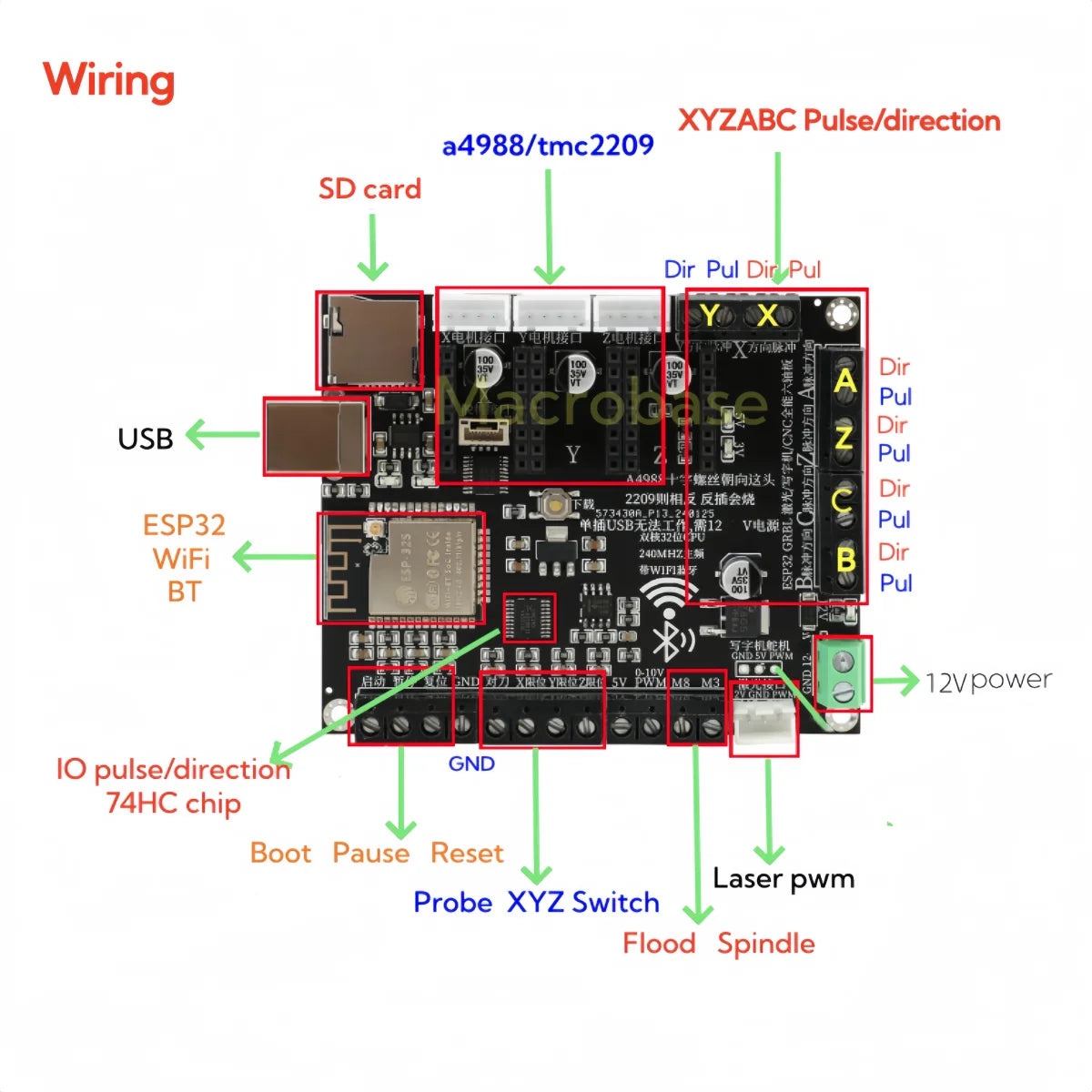

Native IO pulse/direction output, not I2C extended pin scheme,
74HC chip protection with strong anti-interference capability.
6 axis,XYZ can plug a4988/tmc2209 stepper driver.
And extend pulse/direction interface of XYZABC.
12v power input.
Support XYZ limit switch,Z-probe,flood and spindle.
github.com/Macrobase-tech/ESP32_GRBL_6-Axis
Packing List
1*GRBL 6axis Board + 1*USB
Feature
Adopt ESP32-S core processor and dual core 32-bits 240MHz CPU.
Compatible with Candle,LightBurn,ioSender,GRBL controller software...
Support WIFI, Bluetooth, USB, SD card, PC and wireless Ethernet.
Support laser/plotter/writing machine and CNC.
Native IO pulse/direction output, not I2C extended pin scheme,
74HC chip protection with strong anti-interference capability.
6 axis,XYZ can plug a4988/tmc2209 stepper driver.
And extend pulse/direction interface of XYZABC.
12v power input.
Support XYZ limit switch,Z-probe,flood and spindle.

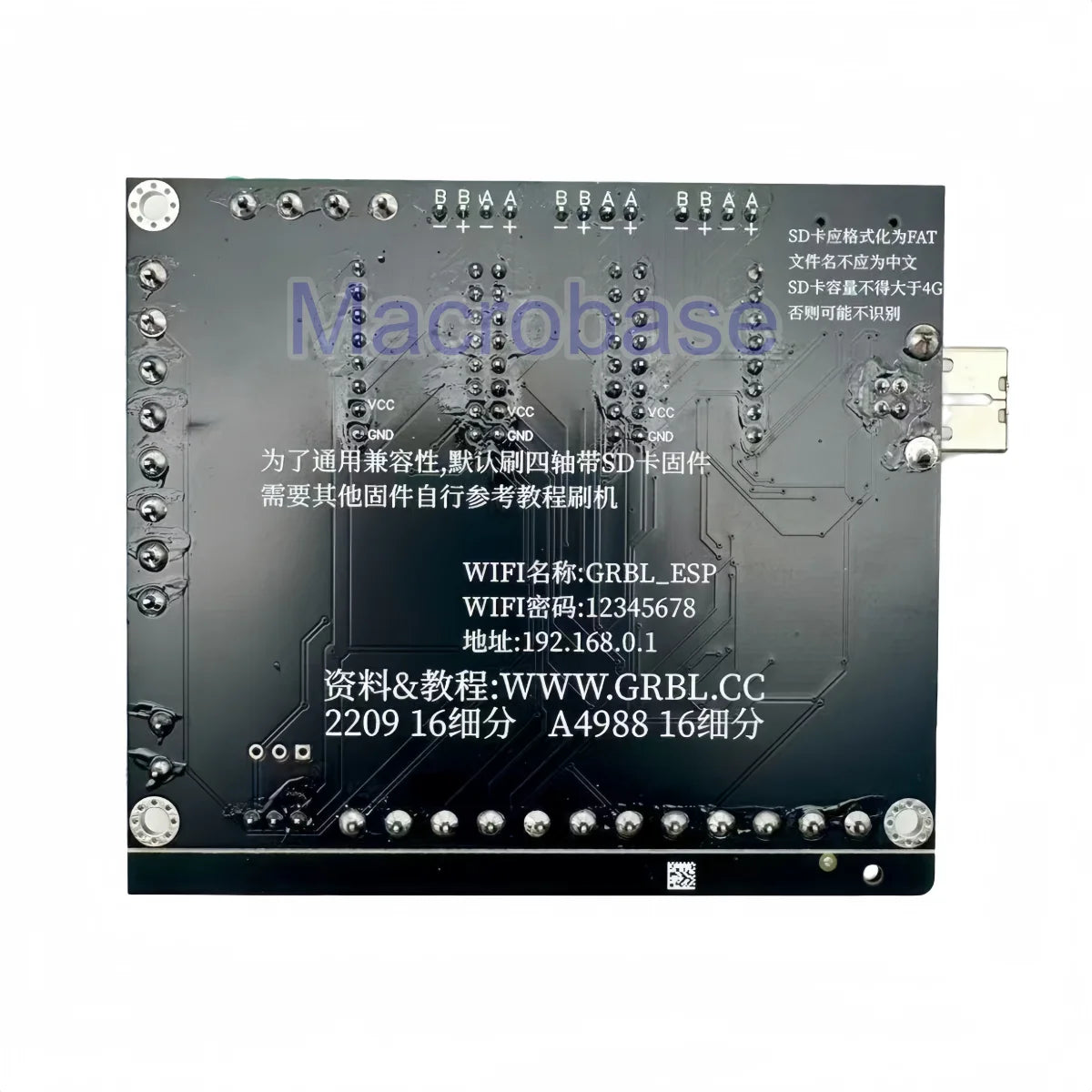

Compatible with FAT mode and 1g-4g SD card.
Both A4988/TMC2209 is 1/16 microstep.
