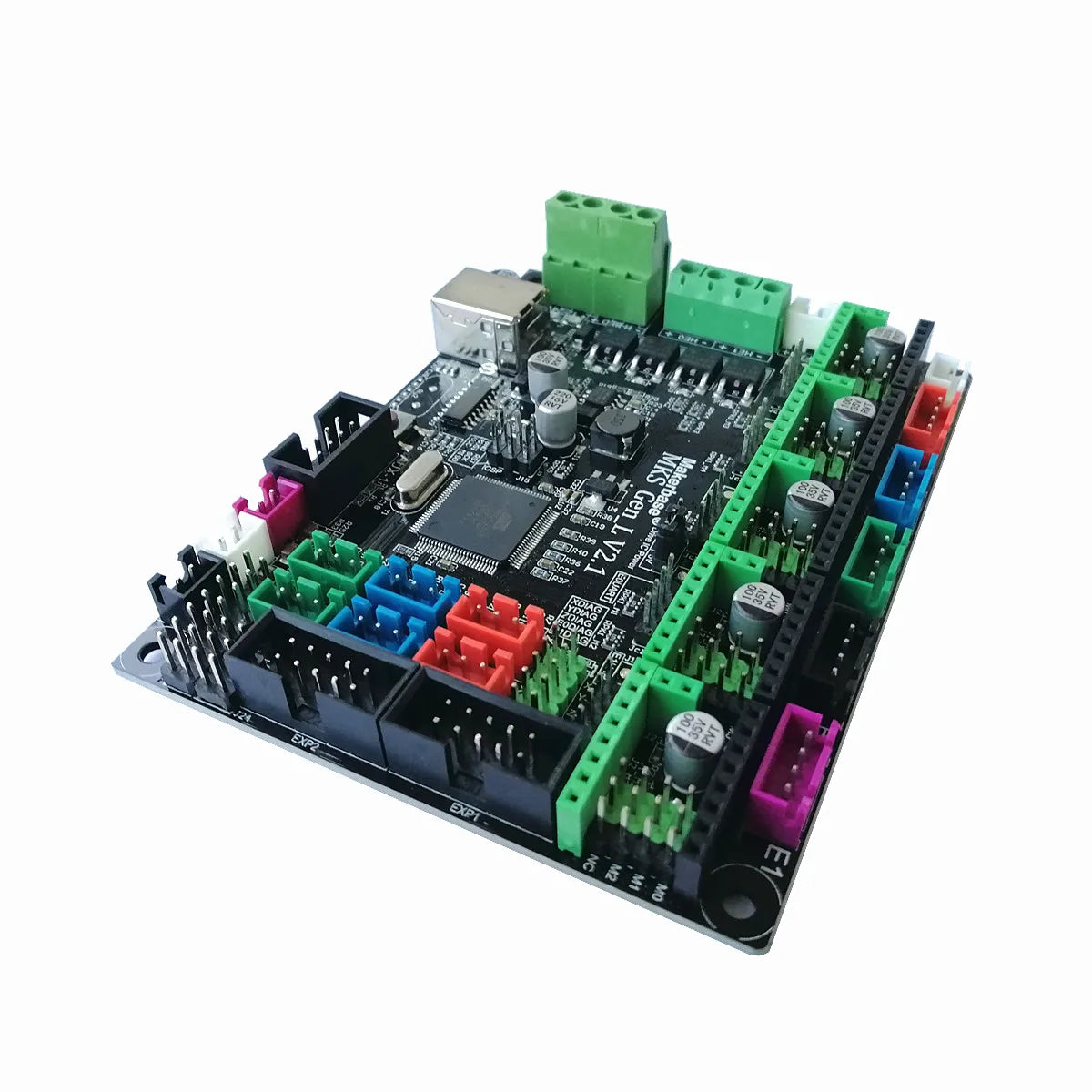

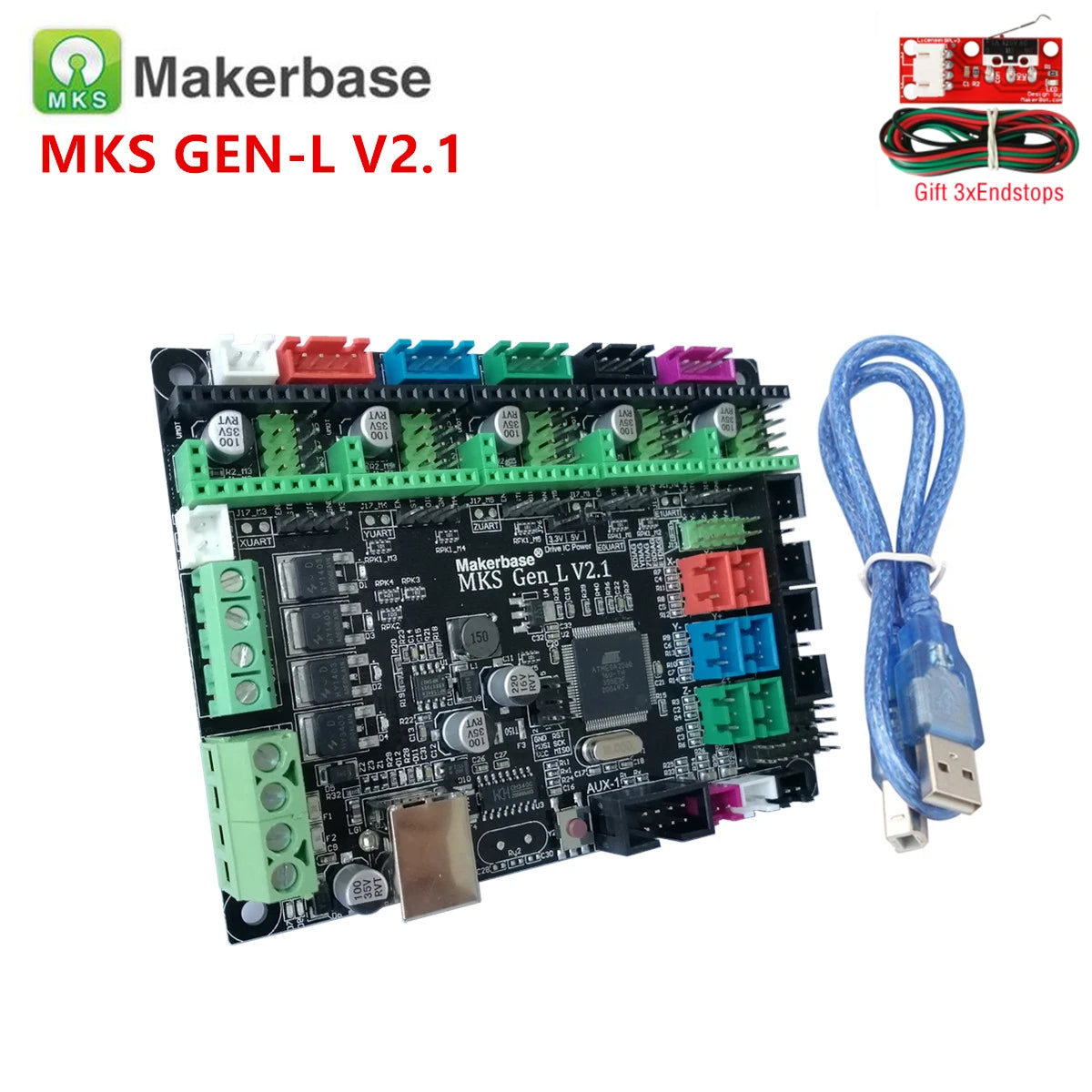

Makerbase original MKS GEN L V2.1

$42.00

~~$49.00~~ $42.00

Sale Sold out

Color GenL-2208 GenL-8825 GenL-4988 GenL-2209 GEN-L

Quantity

Name: MKS GEN-L

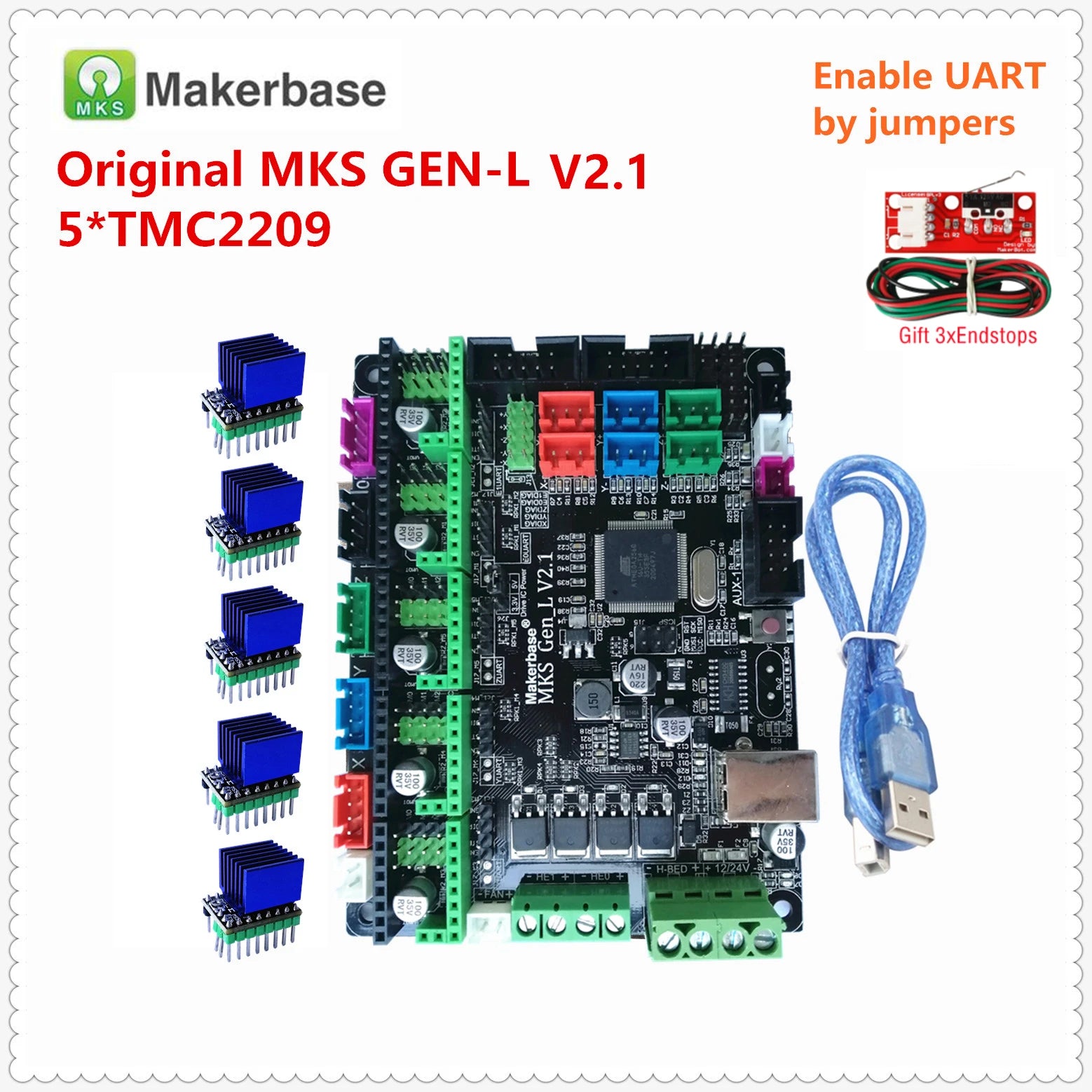

This motherboard is integrated which is based on Marlin open source,greatly compatible with Ramps&Mega2560. Further, it is good cost effective with high performance.

Packing List

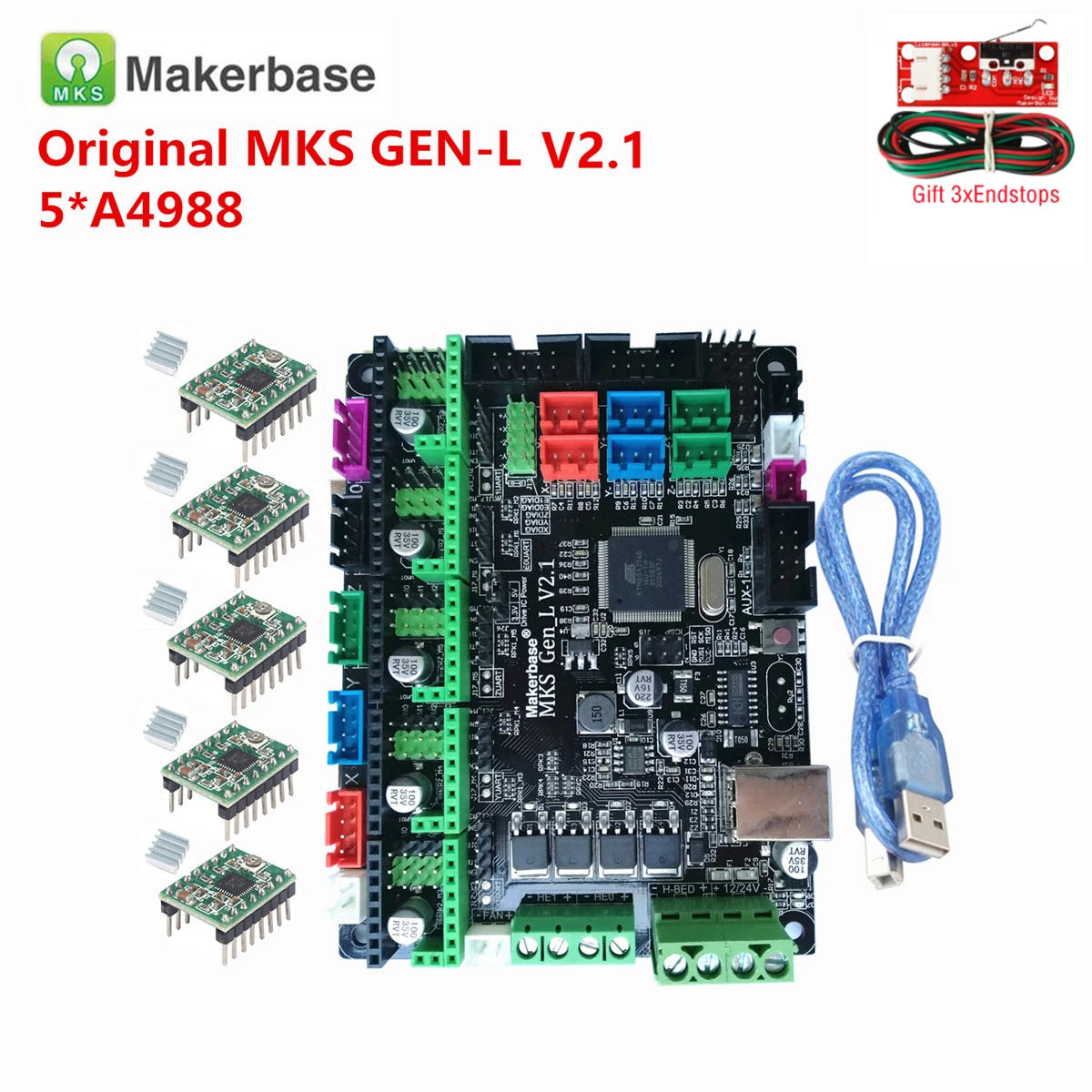

1* MKS Gen-L V2.1

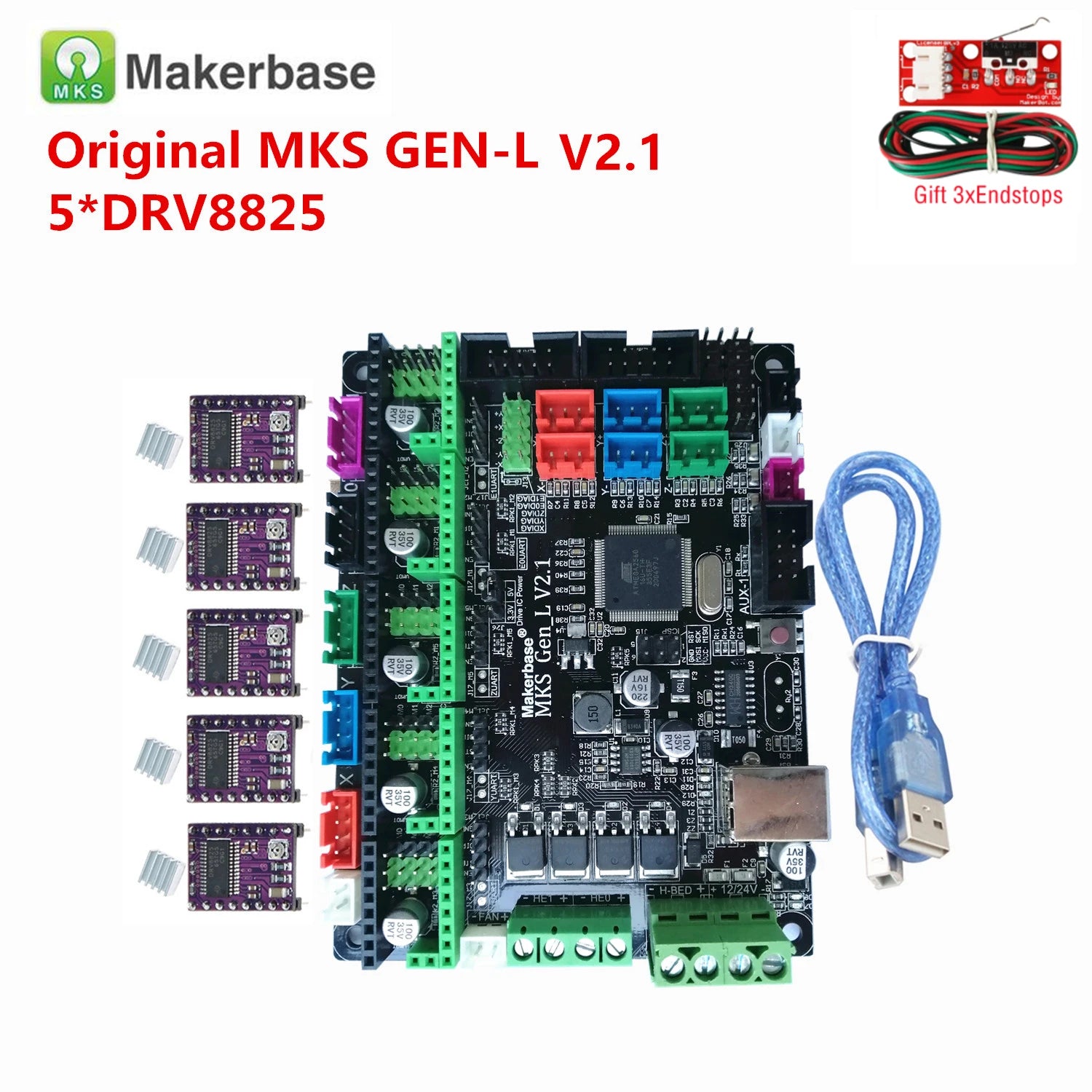

5*Stepper Driver

3*Endstops
1*USB

Features

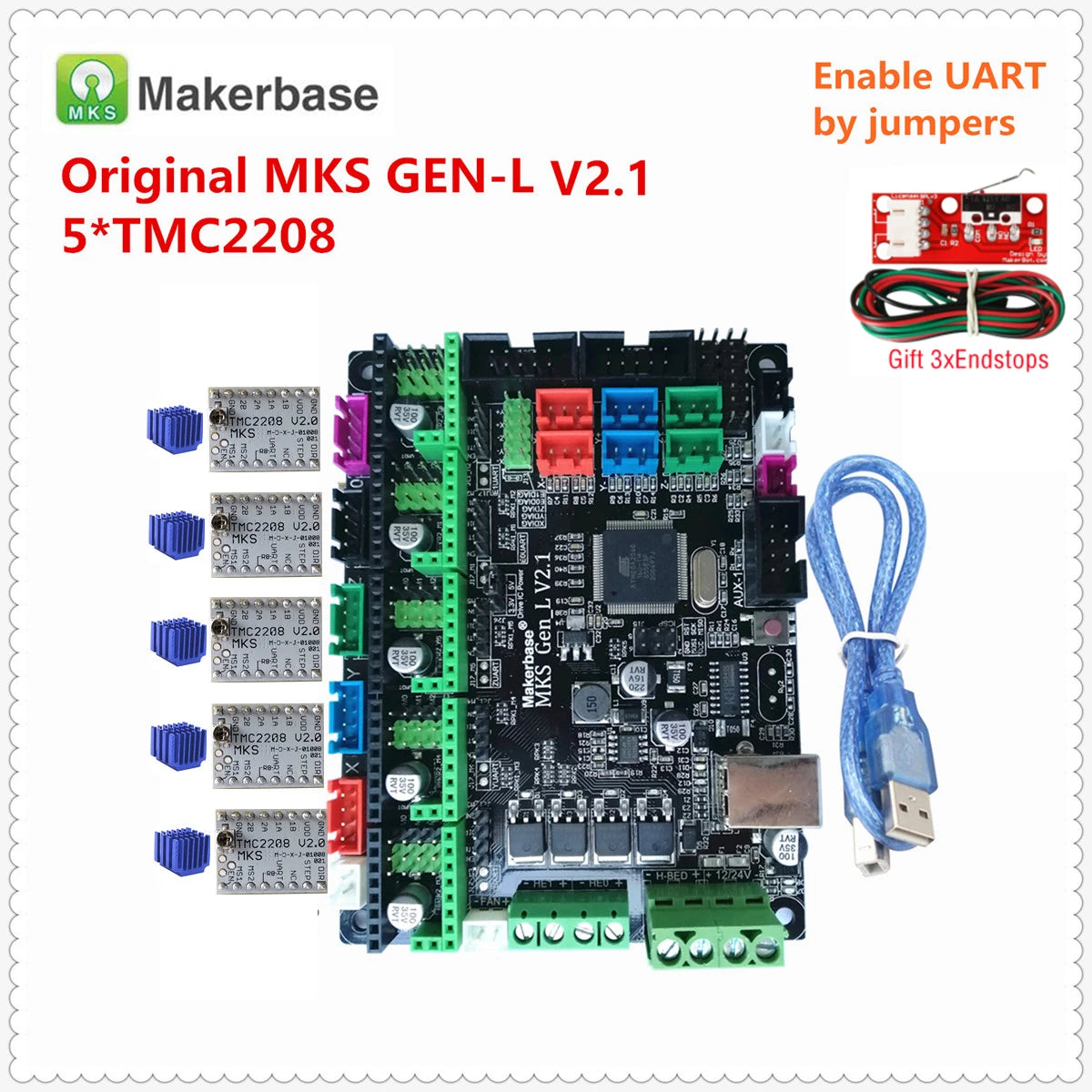

Compared to V1.0, V2.1 can be easily enable TMC stepper driver by jumpers.No need wiring cable.Such as :TMC2130 SPI mode,TMC2208/2209 UART mode.
Assembly with high quality MOSFET which is good at cooling and ensure stable working in a long time.
Use dedicated power chip which has excellent cooling and stable electricity.
Adopt stable and reliable filter circuit to reduce interference. Improve printing performance.
Highly, improve the MOSFET cooling of heated bed .
It is easy and safe to assemble motors, drivers and endstops in different color.
Attention:Please disconnect all parts from the board when upload firmware.

More features as following

Wiring

Pinout

Size

Stepper Driver Enable on MKS GEN-L V2.1

Note: the following descriptions is only suitable for mks series of drivers other manufacturers may have different setting steps. 1. Step / dir Normal Mode When the driver is under the Normal Mode (such as A4988, LV8729, TB67S109) Microsteps can be adjusted via jumper caps. Insert the jumper caps onto the right side black pin areas(M0, M1, M2) to adjust microsteps according to personal own needs. Note: It isn't recommended to insert jumper caps to the fourth column pin areas (red areas), because some drivers functions may be affected ( such as TB67S109 ) if inserting jumper caps onto the fourth column pin areas.

2. Uart Mode ( MKS TMC2208 V2.0 ) When the motor is under the UART Mode, current and working mode can be configured directly via marlin firmware. As the following figure shows 1. All jumper caps on the driver need to be taken out. ( ban inserting jumper caps onto driver ) 2. Insert jumper caps onto UART pin areas of motherboard. 3. Setting up the driver parameter via marlin firmware( refer to datasheet for detail )
