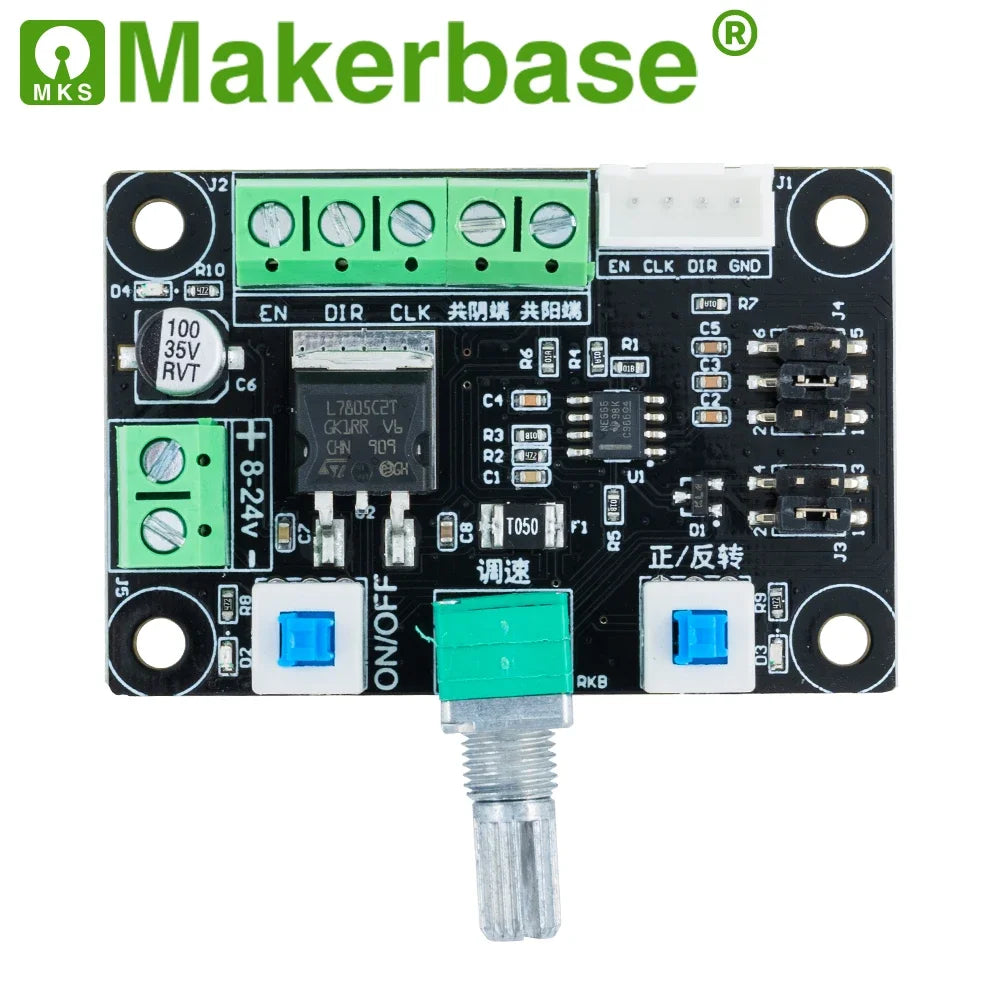

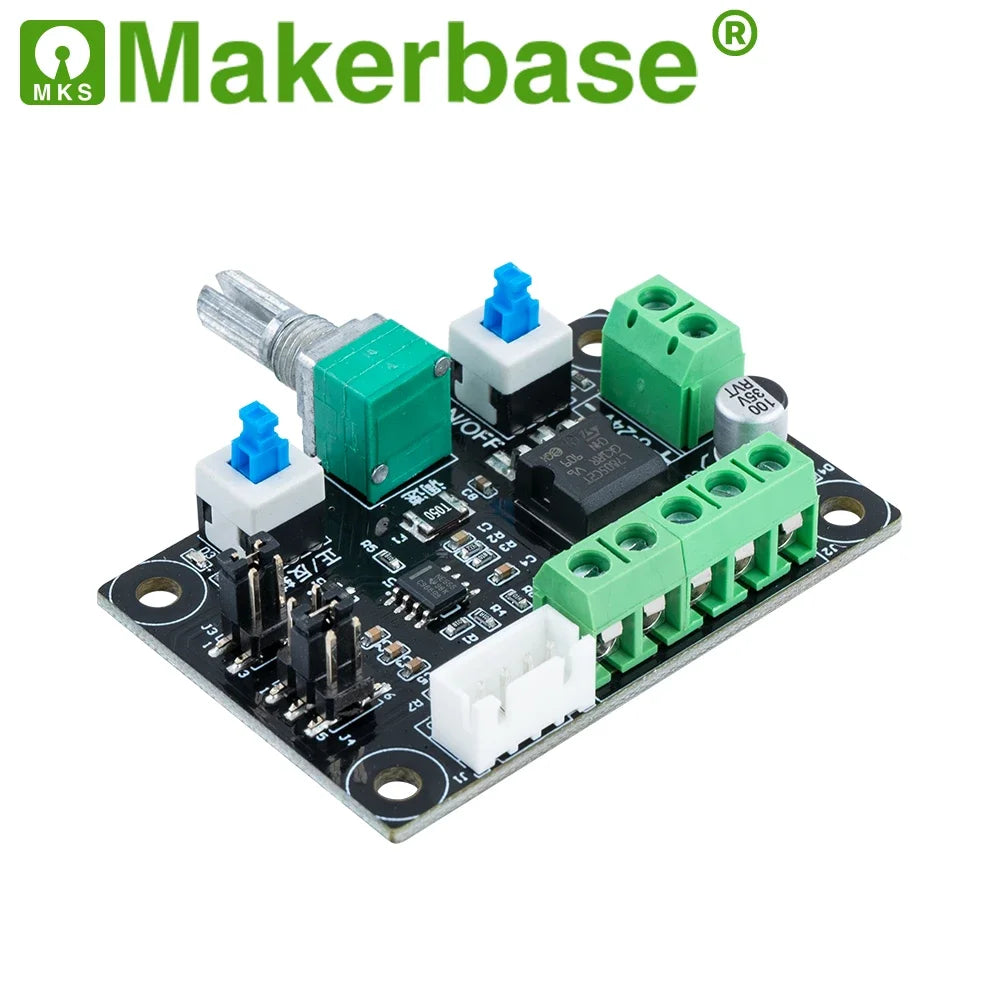

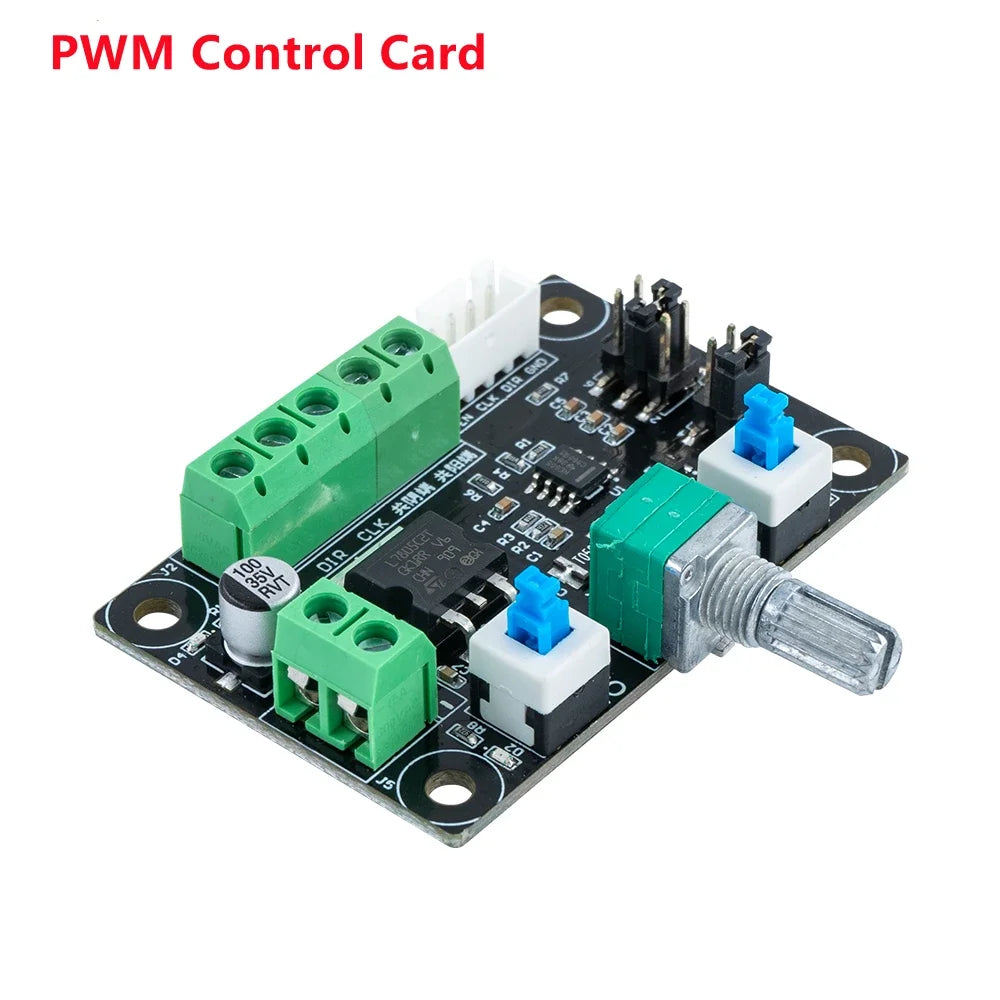

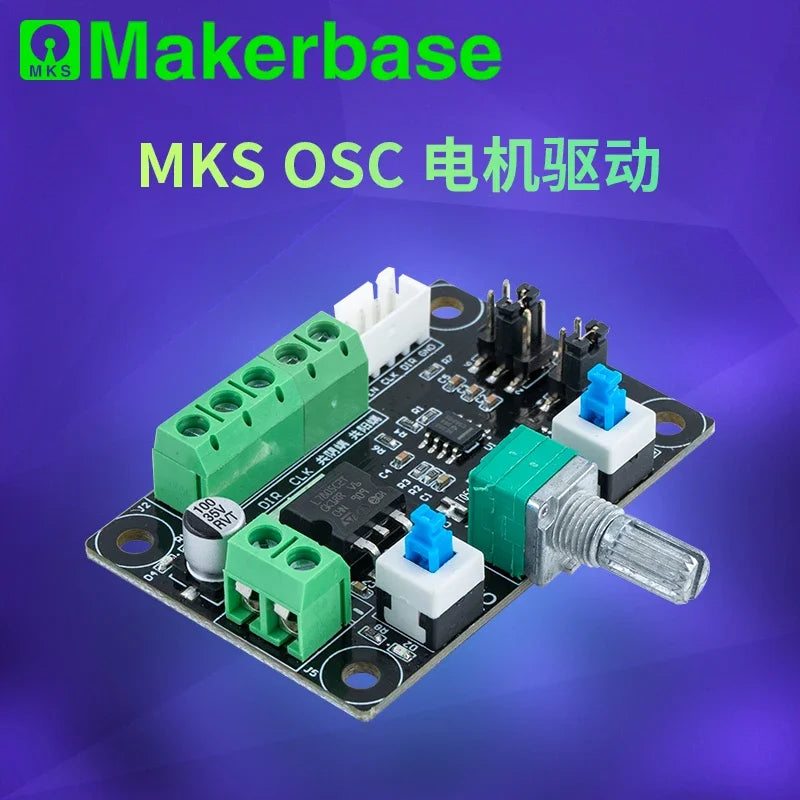

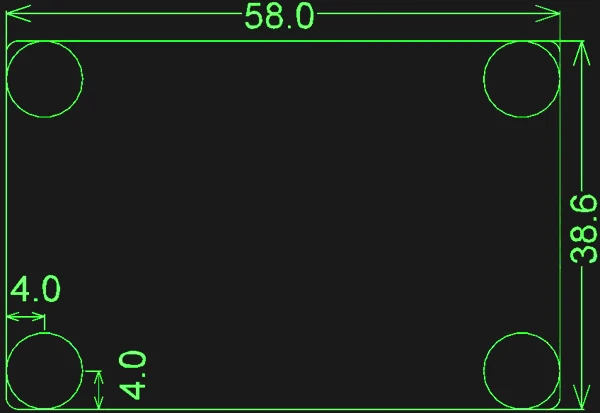

OSC PWM Controller Stepper Motor Pulse Signal Generator

1.This OSC module is a pulse generating module, supply the control signal to stepper driver.

2.Simply control platform by this MKS OSC + stepper driver + stepper motor + DC power supply.

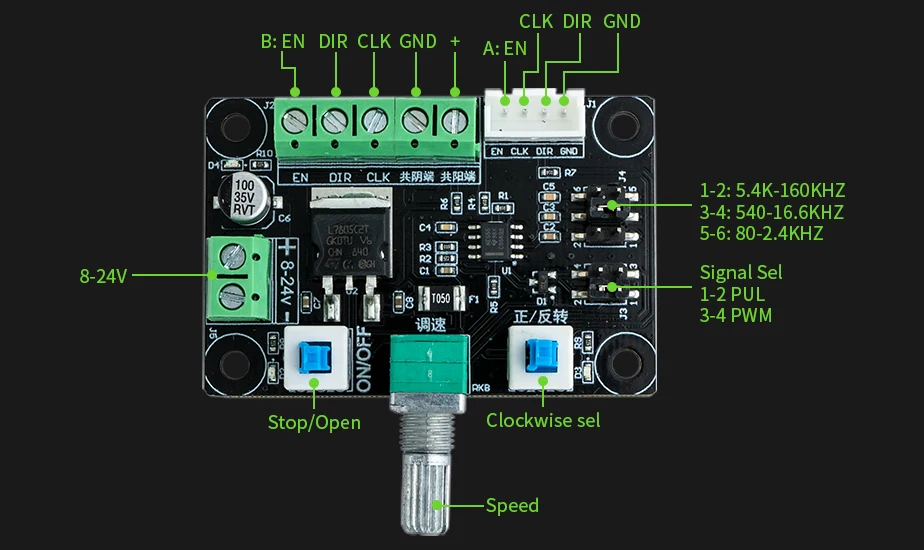

3.There are 3 frequency signal to select by jumpers,
   high 5.4k-160khz
middle 540-16.6khz
low 80-2.4khz

4.Generate pulse and PWM signal, enable by jumper.

5.The frequency of measurement: PUL and common cathode end.

EN=ENA=FREE       Enable

PUL=PULS=CLK     Pulse

DIR=CW=CWW      Direction

EN+  PUL+   DIR+ connect together to com+.

EN- connect  EN

PUL- connect  CLK

DIR- connect  DIR
