USB to CAN BUS analyzer CANABLE PRO controller

Description:
CAN non isolation chip TJA1051T/3 is adopted, and the baud rate can reach 1M

USB to CAN module (TJA1051T/3 non isolated version) CAN bus debugging assistant CAN bus analyzer supports open source host computer Cangaroo CAN protocol analysis software

CANABLE usb to can module is transplanted based on open source project.

The open source host computer Cangaroo can be used to analyze the CAN bus protocol.

Functional features:

Input voltage: 5V (USB power supply)

Chip: TJA1051T/3

Baud rate: up to 1M

Status indicator: three color LED

Support: open source host computer Cangaroo CAN protocol analysis software

Instructions:

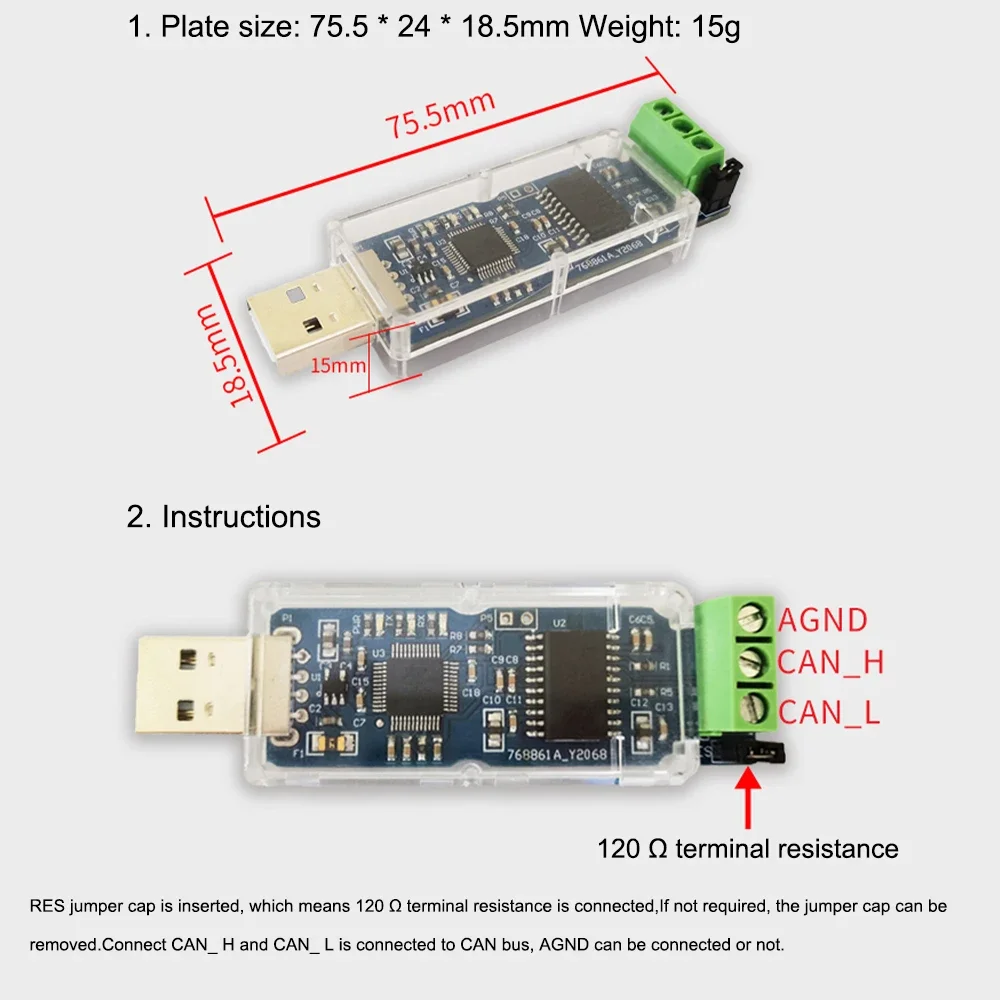

The RES jumper cap is inserted, which means the 120Q terminal resistor is connected. If not required, the jumper cap can be removed.

Connect CAN_ H and CAN_ L is connected to CAN bus, and GND can be connected or not.

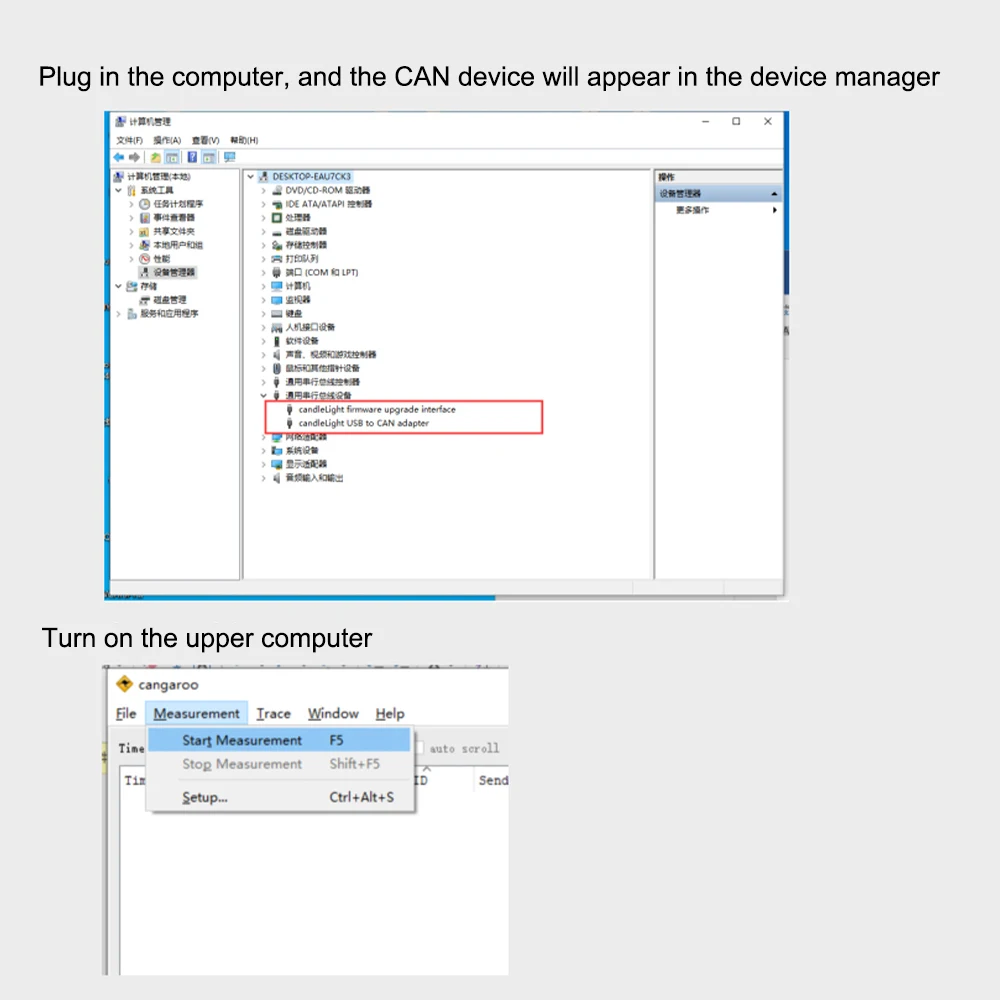

Plug in the computer, and the CAN device will appear in the device manager

Turn on the upper computer

Select the required baud rate and sampling point, click OK, and the on-board tri color light will be on,

Can send and receive data on the CAN bus.
